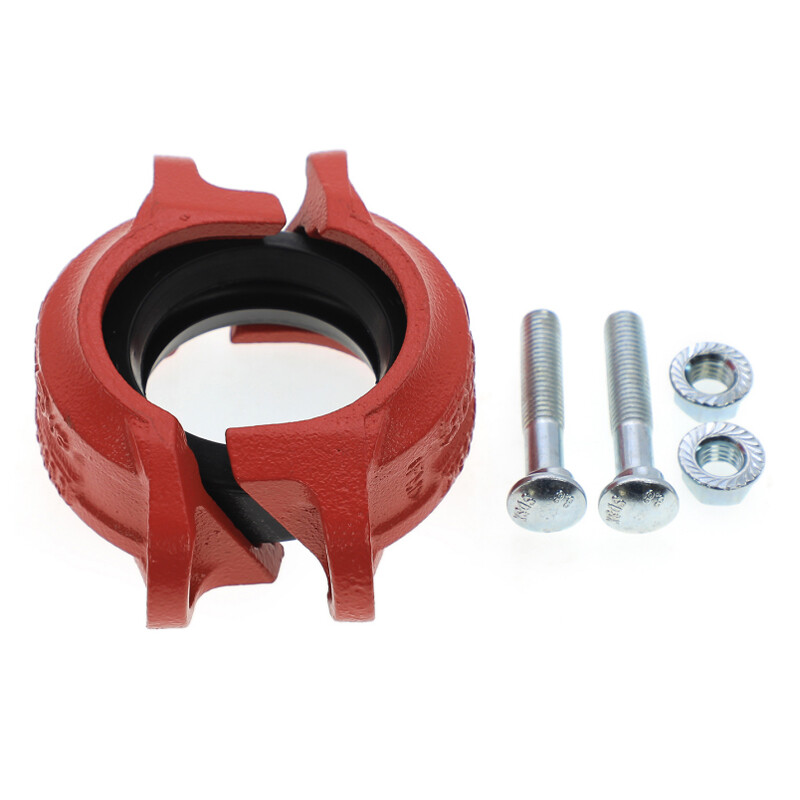

Angle Pad Coupling XGQT1GK
Housing Material: Ductile iron conforming to ASTM A-536 65-45-12
Coating: Paint, Epoxy, Galvanized, Dacromet
Gasket: EPDM, Nitrile NBR, Silicone
Bolts&nuts: Grade 8.8
Tel/WeChat：+86-15863655878
WhatsApp：++86 15863655878
Email:info@sdsxgy.com

PRODUCT DESCRIPTION


Nominal Size

mm/in

Pipe OD.

mm/in

Working

Pressure

psi/Mpa

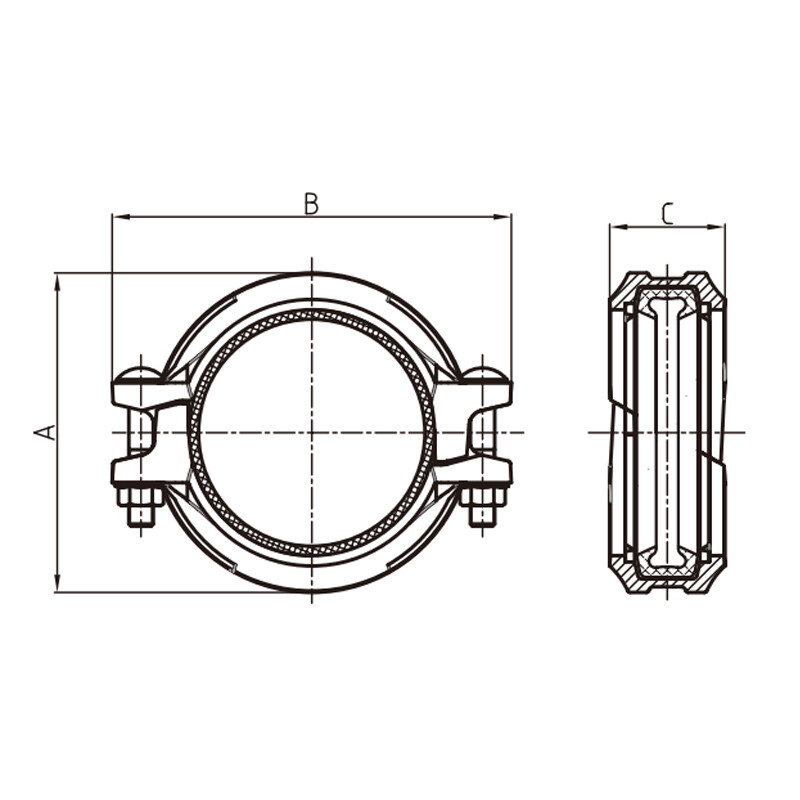

Dimensions mm/inBolt Size

A

mm/in

B

 mm/in

C

mm/in

No.-Size

mm

32

1¼

42.4

1.669

300 psi

2.07 Mpa

65

2.55

108

 4.25

44

1.74

M10*45-2

40

1½

48.3

1.9

72

2.84

114

4.48

44

1.74

M10*45-2

50

2

60.3

2.375

84

3.30

126

4.96

46

1.81

M10*55-2

65

2½

73

2.875

97

3.81

140

5.52

46

1.81

M10*55-2

65

2½

76.1

3

100

3.93

142

5.59

46

1.81

M10*55-2

80

3

88.9

3.5

114

4.48

154

6.06

46

 1.81

M10*55-2

100

4

108

4.25

135

5.31

186

7.32

50

1.96

M12*65-2

100

 4

114.3

4.5

138

5.43

192

7.55

50

1.96

M12*65-2

125

5

133

5.25

162

6.37

213

8.38

50

1.96

M12*70-2

125

5

139.7

5.5

170

6.73

220

8.66

50

1.96

M12*70-2

125

5

141.3

5.563

171

6.73

222

 8.74

50

1.96

M12*70-2

150

6

159

6.25

190

7.48

241

9.48

50

1.96

M12*75-2

150

6

165.1

6.5

196

7.71

248

 9.76

50

1.96

M12*75-2

150

6

168.3

6.625

200

7.87

252

 9.92

50

1.96

M12*75-2

200

8

219.1

8.625

258

10.15

322

12.67

60

 2.36

M16*85-2

250

10

273

10.75

318

12.51

400

15.74

62

2.44

M22*100-2

300

12

323.9

12.750

372

14.64

454

17.87

64

 2.51

M20*100-2
