Concentric Reducer Grooved XGQT07

Housing Material: Ductile iron conforming to ASTM A-536 65-45-12
Coating: Paint, Epoxy, Galvanized, Dacromet
Groove: Conforming to international general requirements and can be connected with any brand grooved fittings and couplings.

Tel/WeChat：+86-15863655878

WhatsApp：++86 15863655878

Email:info@sdsxgy.com

PRODUCT DESCRIPTION

Nominal

Size

mm/in

Pipe OD.

mm/in

Working

Pressure

psi/Mpa

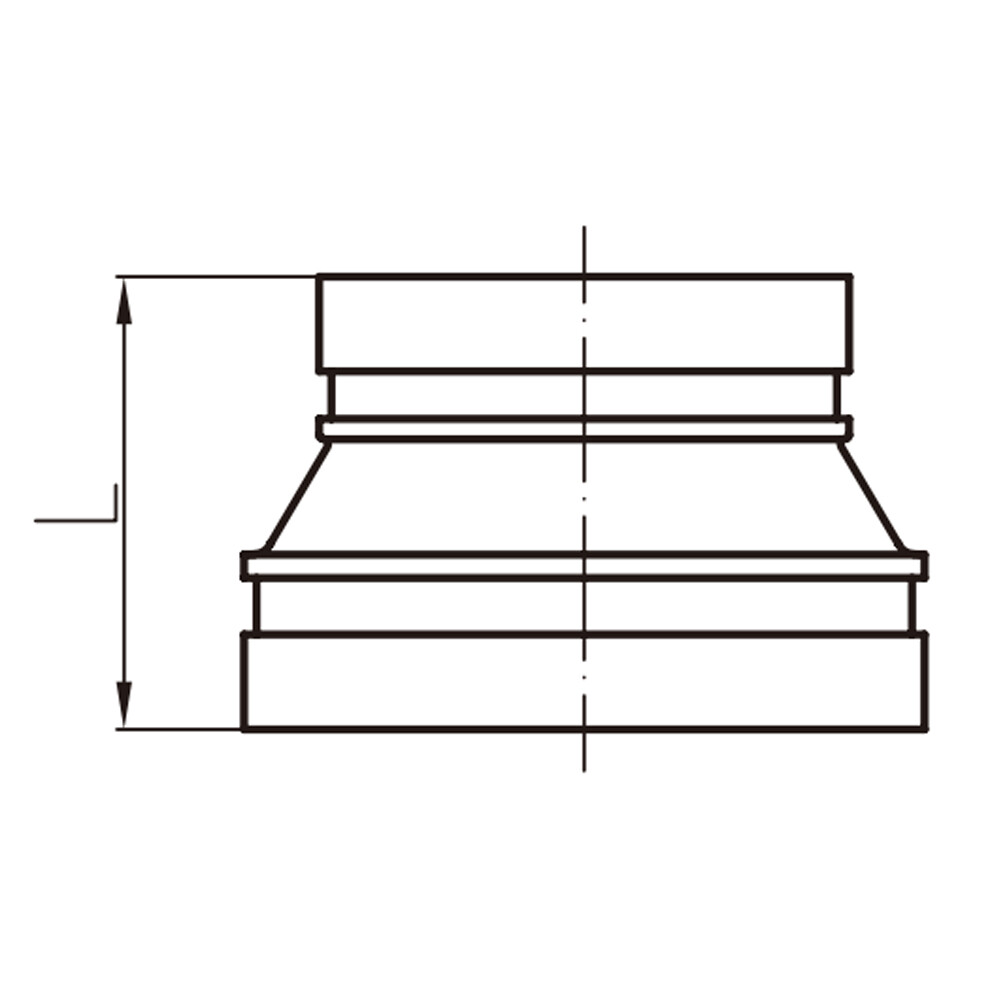

Dimensions L

mm/in

32×25

1¼x1

42.4×33.7

1.660×1.315

300 psi

2.07 Mpa

2.51

40×25

1½x1

48.3×33.7

1.900×1.315

2.51

40×32

1½x1¼

48.3×42.4

1.900×1.660

2.51

50×25

2×1

60.3×33.7

2.375×1.315

2.51

50×32

2×1¼

60.3×42.4

2.375×1.660

2.51

50×40

2x1½

60.3×48.3

2.375×1.900

2.51

65×25

2½x1

73.0×33.7

2.875×1.315

2.51

65×32

2½x1¼

73.0×42.4

2.875×1.660

2.51

65×40

2½x1½

73.0×48.3

2.875×1.900

2.51

65×50

2½x2

73.0×60.3

2.875×2.375

2.51

65×32

2½x1¼

76.1×42.4

3.000×1.660

2.51

65×40

2½x1½

76.1×48.3

3.000×1.900

2.51

65×50

2½x2

76.1×60.3

3.000×2.375

2.51

80×32

3×1¼

88.9×42.4

3.500×1.660

2.51

80×40

3×1½

88.9×48.3

3.500×1.900

2.51

80×50

3×2

88.9×60.3

3.500×2.375

2.51

80×65

3×2½

88.9×76.1

3.500×3.000

2.51

100×65

4×2½

108.0×76.1

4.250×3.000

2.99

100×80

4×3

108.0×88.9

4.250×3.500

2.99

100×32

4×1¼

114.3×42.4

4.500×1.660

2.99

100×40

4×1½

114.3×48.3

4.500×1.900

2.99

100×50

4×2

114.3×60.3

4.500×2.375

2.99

100×65

4×2½

114.3×76.1

4.500×3.000

2.99

100×80

4×3

114.3×88.9

4.500×3.500

2.99

125×50

5×2

139.7×60.3

5.500×2.375

3.50

125×65

5×2½

139.7×76.1

5.500×3.000

3.50

125×80

5×3

139.7×88.9

5.500×3.500

3.50

125×100

5×4

139.7×114.3

5.500×4.500

3.50

125×50

5×2

141.3×60.3

5.563×2.375

3.50

125×65

5×2½

141.3×76.1

5.563×3.000

3.50

125×80

5×3

141.3×88.9

5.563×3.500

3.50

125×100

5×4

141.3×114.3

5.563×4.500

3.50

150×50

6×2

159.0×60.3

6.250×2.375

102

4.01

150×65

6×2½

159.0×76.1

6.250×3.000

102

4.01

150×80

6×3

159.0×88.9

6.250×3.500

102

4.01

150×100

6×4

159.0×108.0

6.250×4.250

102

4.01

150×100

6×4

159.0×114.3

6.250×4.500

102

4.01

150×125

6×5

159.0×133.0

6.250×5.250

102

4.01

150×125

6×5

159.0×139.7

6.250×5.500

102

4.01

150×50

6×2

165.1×60.3

6.500×2.375

102

4.01

150×65

6×2½

165.1×76.1

6.500×3.000

102

4.01

Nominal

Size

mm/in

Pipe OD.

mm/in

Working

Pressure

psi/Mpa

Dimensions L

mm/in

150×80

6×3

165.1×88.9

6.500×3.500

300 psi

2.07 Mpa

102

4.01

150×100

6×4

165.1×114.3

6.500×4.500

102

4.01

150×125

6×5

165.1×139.7

6.500×5.500

102

4.01

150×50

6×2

168.3×60.3

6.625×2.375

102

4.01

150×65

6×2½

168.3×76.1

6.625×3.000

102

4.01

150×80

6×3

168.3×88.9

6.625×3.500

102

4.01

150×100

6×4

168.3× 114.3

6.625×4.500

102

4.01

150×80

6×5

168.3×139.7

6.625×5.500

102

4.01

200×50

8×2

219.1×60.3

8.625×2.375

127

200×65

8×2½

219.1×76.1

8.625×3.000

127

200×80

8×3

219.1×88.9

8.625×3.500

127

200×100

8×4

219.1×108.0

8.625×4.250

127

200×100

8×4

219.1×114.3

8.625×4.500

127

200×125

8×5

219.1×139.7

8.625×5.500

127

200×150

8×6

219.1×159.0

8.625×6.250

127

200×150

8×6

219.1×165.1

8.625×6.500

127

200×150

8×6

219.1×168.3

8.625×6.625

127
