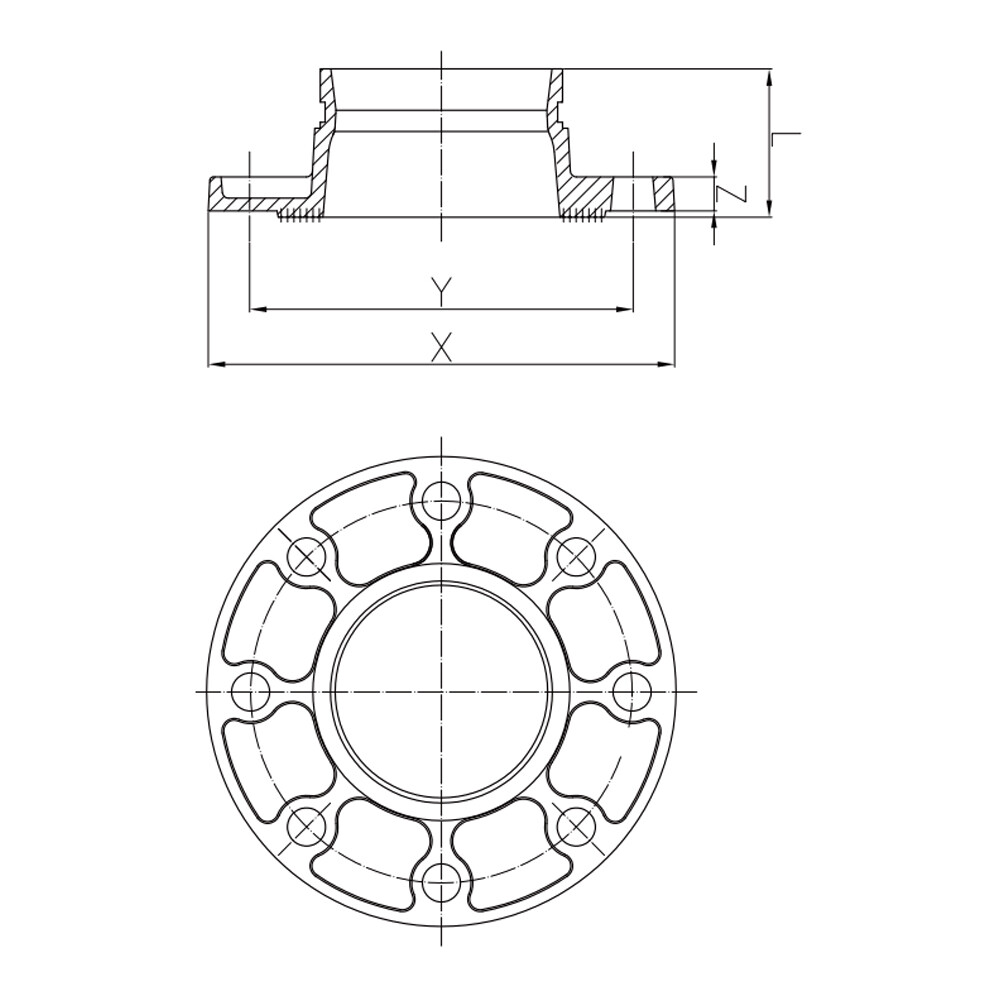

Flange Adaptor PN16 XGQT08
Housing Material: Ductile iron conforming to ASTM A-536 65-45-12
Coating: Paint, Epoxy, Galvanized, Dacromet
Groove: Conforming to international general requirements and can be connected with any brand grooved fittings and couplings.
Style: PN16
Tel/WeChat：+86-15863655878
WhatsApp：++86 15863655878
Email:info@sdsxgy.com

PRODUCT DESCRIPTION

Nominal

Size

mm/in

Pipe OD.

 mm/in

Working

Pressure

psi/Mpa

Dimensions mm/inBolt/Size

L

mm/in

X

mm/in

Y

mm/in

Z

mm/in

No.-Size

mm

50

 2

60.3

2.375

232 psi

1.6 Mpa

65

2.559

165

 6.50

125

 4.92

16

 0.63

4-M 16

65

2½

76.1

 3

65

 2.559

185

 7.28

145

5.70

16

0.63

4-M 16

80

 3

88.9

3.5

65

 2.559

200

 7.87

160

  6.29

16

0.63

8-M 16

100

 4

108

4.25

70

 2.756

220

  8.66

180

7.08

16

 0.63

8-M 16

100

4

114.3

 4.5

70

 2.756

220

8.66

180

 7.08

16

 0.63

8-M 16

125

 5

133

 5.25

70

 2.756

250

 9.84

210

8.26

18

 0.71

8-M 16

125

5

139.7

 5.5

70

2.756

250

 9.84

210

   8.26

18

 0.71

8-M 16

150

 6

159

6.25

70

2.756

282

 11.10

240

  9.44

18

 0.71

8-M 20

150

6

165.1

6.5

70

  2.756

282

11.10

240

  9.44

18

 0.71

8-M 20

150

6

168.3

 6.625

70

 2.756

282

 11.10

240

   9.44

18

 0.71

8-M 20

200

 8

219.1

8.625

80

3.150

340

 13.39

295

 11.61

19

0.74

12-M 20

250

10

273

10.75

85

3.346

405

 15.94

355

13.97

21

0.82

12-M 20

300

12

323.9

 12.750

90

3.543

460

18.11

410

16.14

24

 0.94

12-M 20
