U-Bolted Mechanical Tee XGQT3L

Housing Material: Ductile iron conforming to ASTM A-536 65-45-12
Coating: Paint, Epoxy, Galvanized, Dacromet
Gasket: EPDM, Nitrile NBR, Silicone
Bolts&nuts: Grade 8.8
Thread: BSPT, NPT

Tel/WeChat：+86-15863655878

WhatsApp：++86 15863655878

Email:info@sdsxgy.com

PRODUCT DESCRIPTION

Nominal

Size

mm/in

Pipe OD.

mm/in

Working

Pressure

psi/Mpa

Hole Dia. Mm/in

+1.6,0/+0.063,0

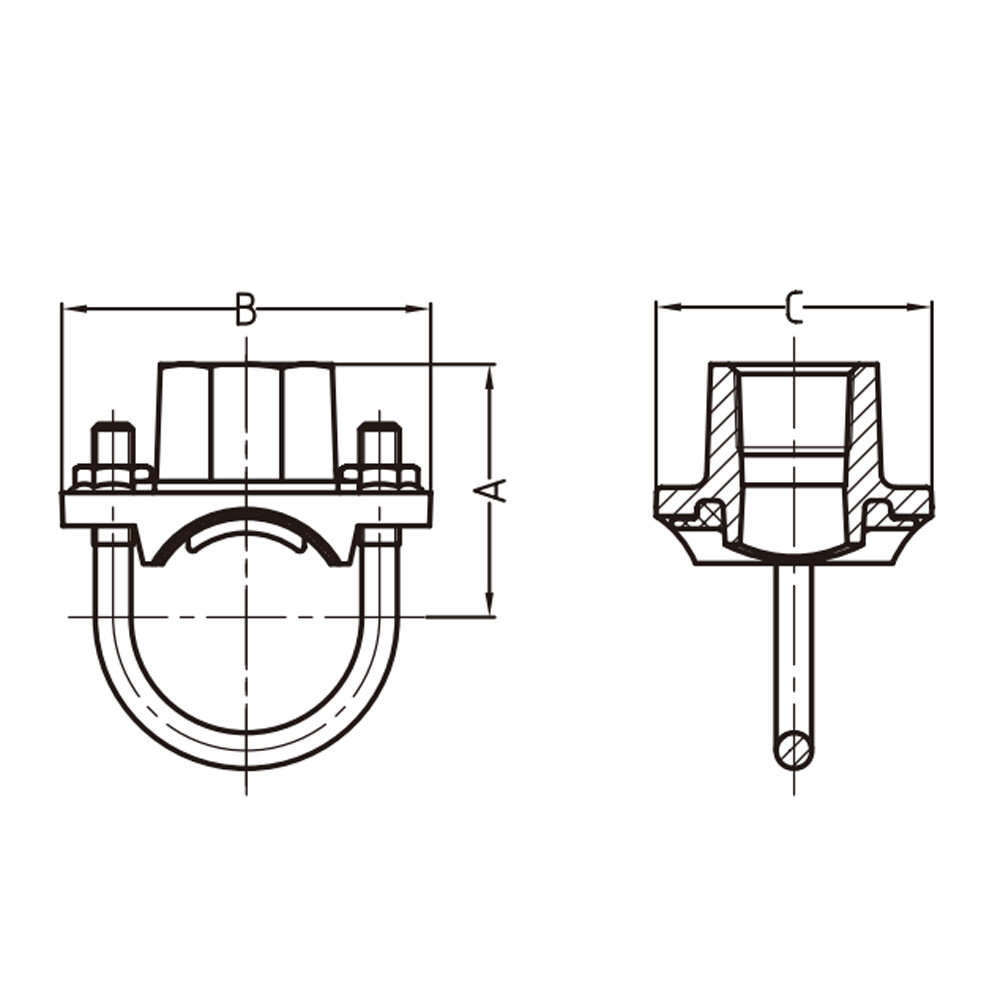

Dimensions mm/in

Bolt Size

25×15

1×½

33.7*21 .3

1.327*0.825

300 psi

2.07 Mpa

0.945

1.929

2.992

1.654

M10*25

25×20

1×¾

33.7*26.9

1.327*0.825

0.945

2.283

3.307

1.654

M10*25

32×15

1¼×½

42.4*21 .3

1.660*0.825

1.18

1.772

3.543

2.205

M10*28.5

32×20

1¼×¾

42.4*26 .9

1.660*1.050

1.18

1.969

3.543

2.205

M10*28.5

32×25

1¼×1

42.4*33 .7

1.660*1.315

1.18

1.969

3.543

2.205

M10*28.5

40×15

1½×½

48.3*21.3

1.900*0.825

1.18

1.693

3.661

2.323

M10*28.5

40×20

1½×¾

48.3*26 .9

1.900*1.050

1.18

2.126

3.661

2.323

M10*28.5

40×25

1½×1

48.3*33.7

1.900*1.315

1.18

2.283

3.661

2.323

M10*28.5

50×15

2×½

60.3×21.3

2.375×0.825

1.18

2.126

3.780

2.323

M10*30

50×20

2×¾

60.3×26.9

2.375×1.050

1.18

2.205

3.780

2.323

M10*30

50×25

2×1

60.3×33.7

2.375×1.315

1.18

2.598

3.780

2.323

M10*30

65×15

2½×½

73.0×21.3

2.875×0.825

1.18

2.362

110

4.331

2.323

M10*30

65×20

2½×¾

73.0×26.9

2.875×1.050

1.18

2.480

110

4.331

2.323

M10*30

65×25

2½×1

73.0×33.7

2.875×1.315

1.18

2.63

110

4.331

2.323

M10*30

65×15

2½×½

76.1×21.3

3.000×0.825

1.18

2.51

110

4.331

2.323

M10*30

65×20

2½×¾

76.1×26.9

3.000×1.050

1.18

2.59

110

4.331

2.323

M10*30

65×25

2½×1

76.1×33.7

3.000×1.315

1.18

2.67

110

4.331

2.323

M10*30

80×25

3×1

88.9×33.7

3.500×1.315

1.18

2.67

124

4.881

2.323

M10*35
