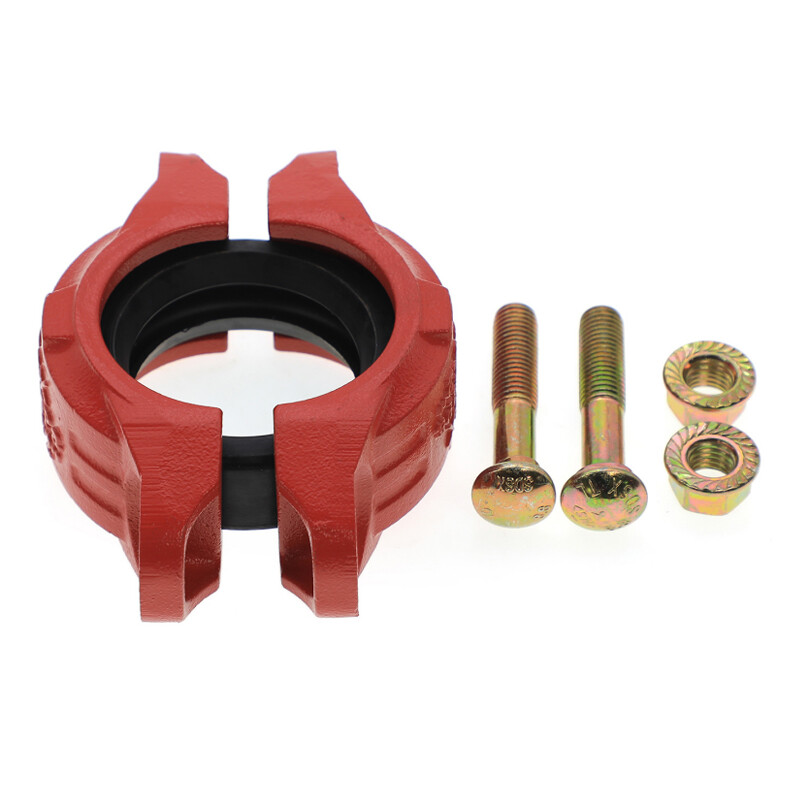

Shoulder Coupling SH35
Housing Material: Ductile iron conforming to ASTM A-536 65-45-12
Coating: Paint, Epoxy, Galvanized, Dacromet
Gasket: EPDM, Nitrile NBR, Silicone
Bolts&nuts: Grade 8.8
Tel/WeChat：+86-15863655878
WhatsApp：++86 15863655878
Email:info@sdsxgy.com

PRODUCT DESCRIPTION

Nominal Size

mm/in

Pipe OD.

mm/in

Working

Pressure

psi/Mpa

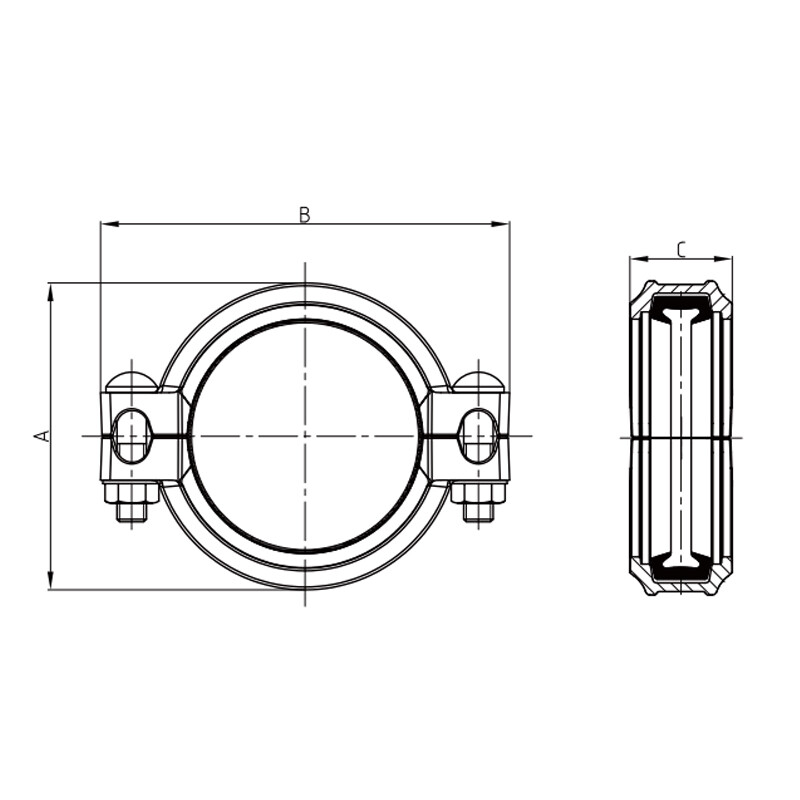

Dimensions

 mm/in

Bolt Size

A

mm/in

B

 mm/in

C

 mm/in

No.-Size mm

50

2

60.3

2.375

300 ps

 2.07 Mpa

97

3.957

132

5.197

48

1.89

M12*60-2

80

3

88.

 3.5

125

4.921

170

6.692

48

1.89

M12*70-2

100

4

11

 4.5

157

6.181

205

8.070

52

2.047

M12*75-2

150

6

165.

 6.5

213

8.386

272

10.708

52

2.407

M16*85-2

200

8

219.

 8.625

278

10.945

345

13.583

60

2.36

M20*100-2

250

10

27

 10.748

340

13.38

415

16.339

64

2.52

M22*130-2

300

12

323.

 12.752

387

15.236

474

18.661

64

2.52

M22*130-2
