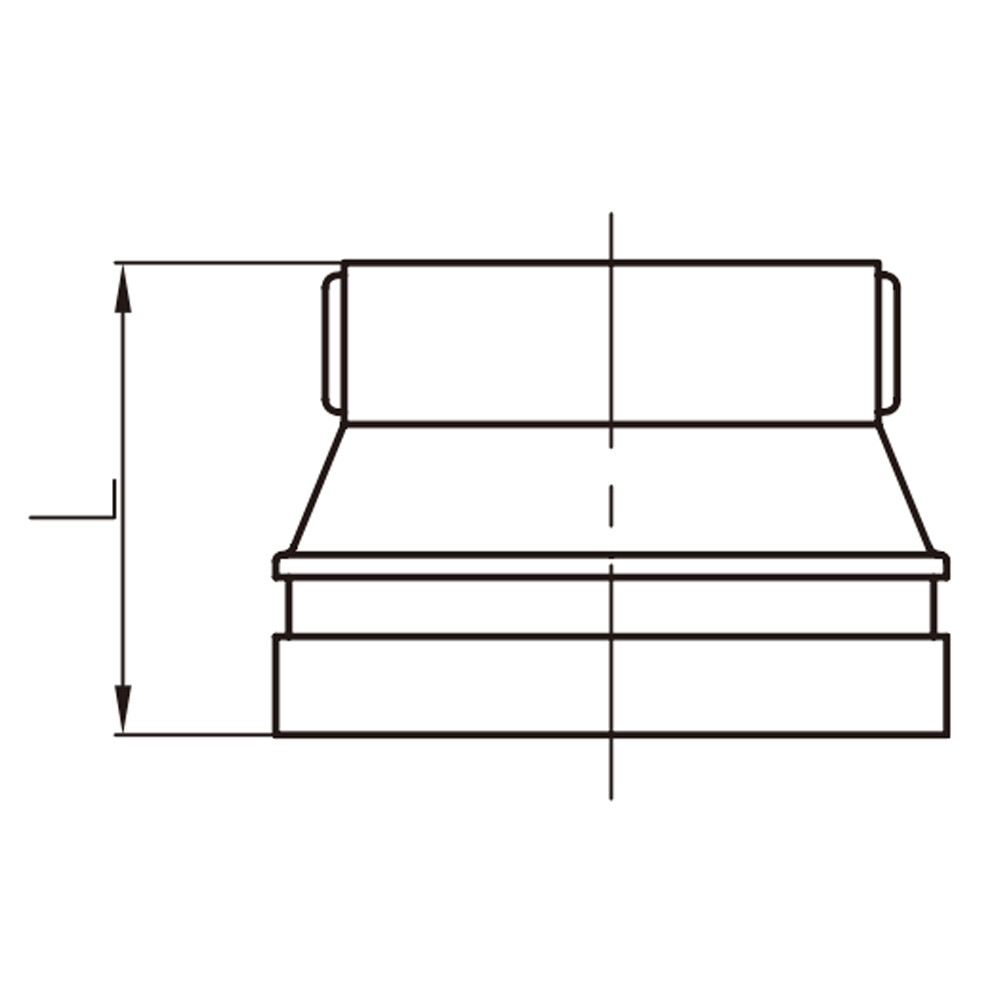

Concentric Reducer Female Thread XGQT07S

Housing Material: Ductile iron conforming to ASTM A-536 65-45-12
Coating: Paint, Epoxy, Galvanized, Dacromet
Groove: Conforming to international general requirements and can be connected with any brand grooved fittings and couplings.
Thread: BSPT, NPT

Tel/WeChat：+86-15863655878

WhatsApp：++86 15863655878

Email:info@sdsxgy.com

PRODUCT DESCRIPTION

Nominal

Size

mm/in

Pipe OD.

mm/in

Working

Pressure

psi/Mpa

Dimensions L

mm/in

32×25

1¼x1

42.4×33.7

1.660×1.315

300 psi

2.07 Mpa

2.51

40×32

1½×1¼

48.3×42.4

1.900×1.660

2.51

50×25

2×1

60.3×33.7

2.375×1.315

2.51

50×32

2×1¼

60.3×42.4

2.375×1.660

2.51

50×40

2×1½

60.3×48.3

2.375×1.900

2.51

65×25

2½x1

73.0×33.7

2.875×1.315

2.51

65×32

2½x1¼

73.0×42.4

2.875×1.660

2.51

65×40

2½x1½

73.0×48.3

2.875×1.900

2.51

65×50

2½x2

73.0×60.3

2.875×2.375

2.51

65×25

2½x1

76.1×33.7

3.000×1.315

2.51

65×32

2½x1¼

76.1×42.4

3.000×1.660

2.51

65×40

2½x1½

76.1×48.3

3.000×1.900

2.51

65×50

2½x2

76.1×60.3

3.000×2.375

2.51

80×25

3×1

88.9×33.7

3.500×1.315

2.51

80×32

3×1¼

88.9×42.4

3.500×1.660

2.51

80×40

3×1½

88.9×48.3

3.500×1.900

2.51

80×50

3×2

88.9×60.3

3.500×2.375

2.51

80×65

3×2½

88.9×76.1

3.500×3.000

2.51

Nominal

Size

mm/in

Pipe OD.

mm/in

Working

Pressure

psi/Mpa

Dimensions L

mm/in

100×25

4×1

108.0×33.7

4.250×1.315

300 psi

2.07 Mpa

2.99

100×32

4×1¼

108.0×42.4

4.250×1.660

2.99

100×40

4×1½

108.0×48.3

4.250×1.900

2.99

100×50

4×2

108.0×60.3

4.250×2.375

2.99

100×65

4×2½

108.0×76.1

4.250×3.000

2.99

100×80

4×3

108.0×88.9

4.250×3.500

2.99

100×25

4×1

114.3×33.7

4.500×1.315

2.99

100×32

4×1¼

114.3×42.4

4.500×1.660

2.99

100×40

4×1½

114.3×48.3

4.500×1.900

2.99

100×50

4×2

114.3×60.3

4.500×2.375

2.99

100×65

4×2½

114.3×76.1

4.500×3.000

2.99

100×80

4×3

114.3×88.9

4.500×3.500

2.99

125×25

5×1

133.0×33.7

5.250×1.315

3.50

125×32

5×1¼

133.0×42.4

5.250×1.660

3.50

125×40

5×1½

133.0×48.3

5.250×1.900

3.50

125×50

5×2

133.0×60.3

5.250×2.375

3.50

125×25

5×1

139.7×33.7

5.500×1.315

3.50

125×32

5×1¼

139.7×42.4

5.500×1.660

3.50

Nominal Size mm/in	Pipe OD. mm/in	Working Pressure psi/Mpa	Dimensions L mm/in
125×40 5×1½	141.3×48.3 5.563×1.900	300 psi 2.07 Mpa	89 3.50
125×50 5×2	141.3×60.3 5.563×2.375		89 3.50
125×65 5×2½	141.3×76.1 5.563×3.000		89 3.50
125×80 5×3	141.3×88.9 5.563×3.500		89 3.50
150×25 6×1	159.0×33.7 6.250×1.315		102 4.01
150×32 6×1¼	159.0×42.4 6.250×1.660		102 4.01
150×40 6×1½	159.0×48.3 6.250×1.900		102 4.01
150×50 6×2	159.0×60.3 6.250×2.375		102 4.01
150×65 6×2½	159.0×76.1 6.250×3.000		102 4.01
150×80 6×3	159.0×88.9 6.250×3.500		102 4.01
150×25 6×1	165.1×33.7 6.500×1.315		102 4.01
150×32 6×1¼	165.1×42 6.500×1.660		102 4.01
150×40 6×1½	165.1×48.3 6.500×1.900		102 4.01
150×50 6×2	165.1×60.3 6.500×2.375		102 4.01
150×65 6×2½	165.1×76.1 6.500×3.000		102 4.01
150×80 6×3	165.1×88.9 6.500×3.500		102 4.01
150×100 6×4	165.1×114.3 6.500×4.500		102 4.01
150×25 6×1	168.3×33.7 6.625×1.315		102 4.01
150×32 6×1¼	168.3×42.4 6.625×1.660		102 4.01
150×40 6×1½	168.3×48.3 6.625×1.900		102 4.01
150×50 6×2	168.3×60.3 6.625×2.375		102 4.01
200×25 8×1	219.1×33.7 8.625×1.315		127 5
200×32 8×1¼	219.1×42.4 8.625×1.660		127 5
200×40 8×1½	219.1×48.3 8.625×1.900		127 5
200×50 8×2	219.1×60.3 8.625×2.375		127 5
200×65 8×2½	219.1×76.1 8.625×3.000		127 5
200×80 8×3	219.1×88.9 8.625×3.500		127 5
200×100 8×4	219.1×114.3 8.625×4.500		127 5
