  • Eccentric Reducer Grooved XGQT071
  • Eccentric Reducer Grooved XGQT071

›

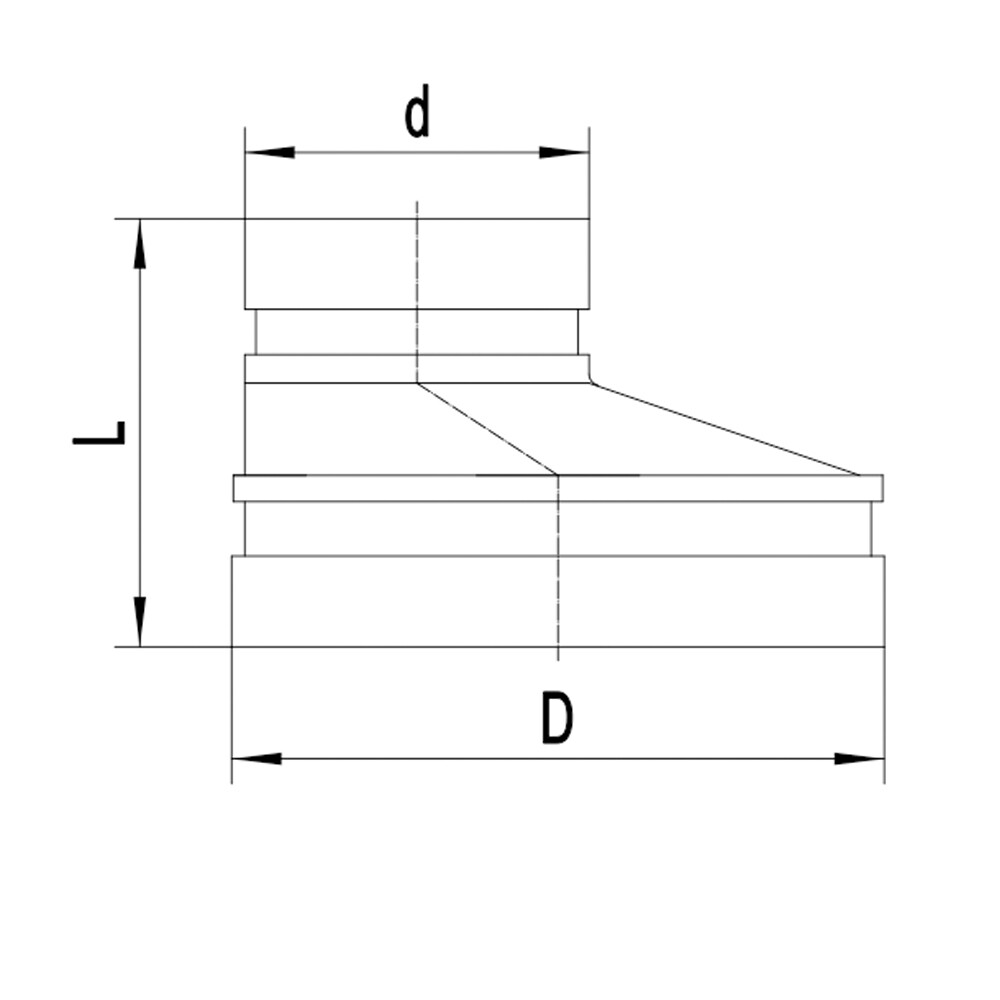

Eccentric Reducer Grooved XGQT071
Housing Material: Ductile iron conforming to ASTM A-536 65-45-12
Coating: Paint, Epoxy, Galvanized, Dacromet
Groove: Conforming to international general requirements and can be connected with any brand grooved fittings and couplings.
Tel/WeChat：+86-15863655878
WhatsApp：++86 15863655878
Email:info@sdsxgy.com

PRODUCT DESCRIPTION

Nominal

Size

mm/in

Pipe OD.

mm/in

Working

Pressure

psi/Mpa

Dimensions L

mm/in

80×50

3×2

88.9×60.3

  3.500×2.375

300 psi

 2.07 Mpa

64

2.51

100×50

4×2

114.3×60.3

 4.500×2.375

76

  2.99

100×65

4×2½

114.3×76.1

  4.500×3.000

76

 2.99

100×80

4×3

114.3×88.9

 4.500×3.500

76

 2.99

125×80

5×3

139.7×88.9

 5.500×3.500

89

 3.50

125×100

5×4

139.7×114.3

5.500×4.500

89

3.50

150×65

6×2½

165.1×76.1

6.500×3.000

102

 4.01

150×80

6×3

165.1×88.9

6.500×3.500

102

4.01

150×100

6×4

165.1×114.3

 6.500×4.500

102

4.01

150×125

 6×5

165.1×139.7

6.500×5.500

102

4.01

150×80

 6×3

168.3×88.9

 6.625×3.500

102

  4.01

150×100

 6×4

168.3× 114.3

6.625×4.500

102

 4.01

150×80

6×5

168.3×139.7

6.625×5.500

102

  4.01

200×80

 8×3

219.1×88.9

8.625×3.500

127

 5

200×100

8×4

219.1×114.3

 8.625×4.500

127

 5

200×125

 8×5

219.1×139.7

 8.625×5.500

127

 5

200×150

8×6

219.1×165.1

  8.625×6.500

127

5

200×150

 8×6

219.1×168.3

 8.625×6.625

127

 5
