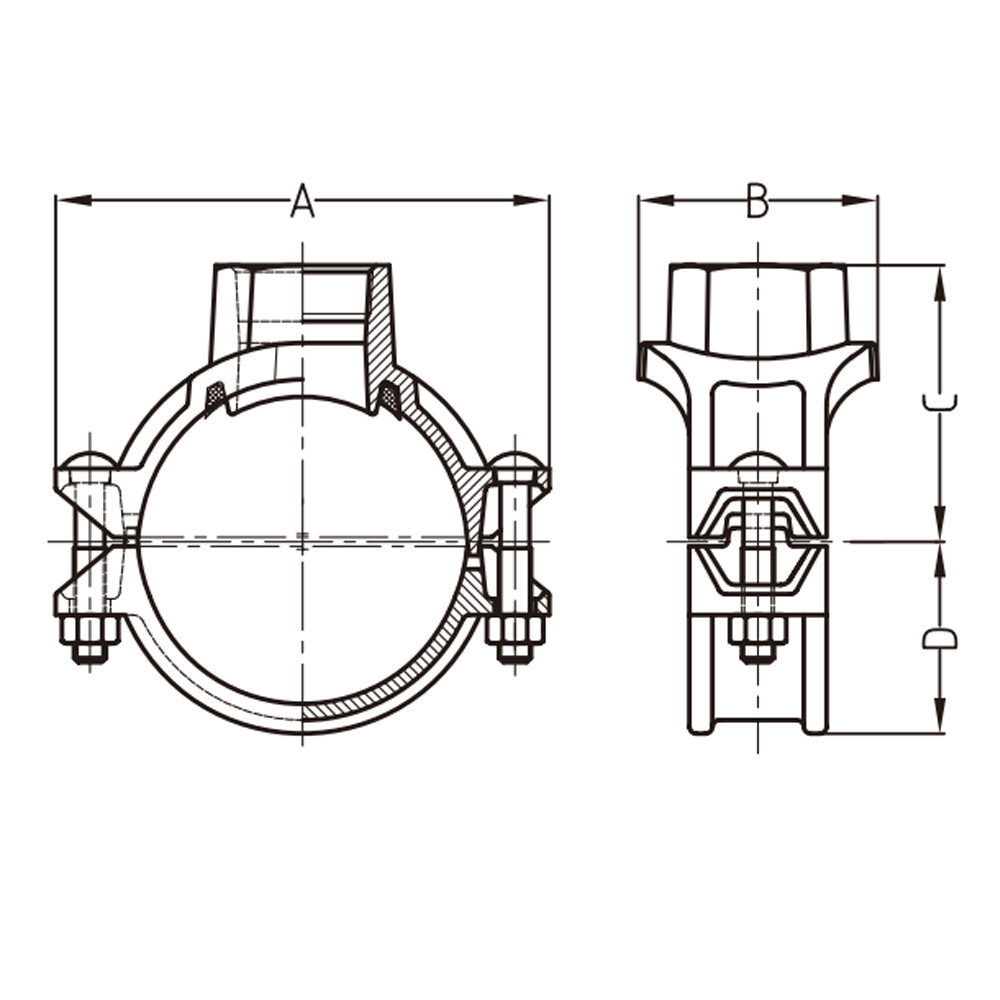

Mechanical Tee Threaded Outlet XGQT3S
Housing Material: Ductile iron conforming to ASTM A-536 65-45-12
Coating: Paint, Epoxy, Galvanized, Dacromet
Gasket: EPDM, Nitrile NBR, Silicone
Bolts&nuts: Grade 8.8
Thread: BSPT, NPT
Tel/WeChat：+86-15863655878
WhatsApp：++86 15863655878
Email:info@sdsxgy.com

PRODUCT DESCRIPTION

Nominal

Size

mm/in

Pipe OD. mm/in

Working

 Pressure

psi/Mpa

Hole Dia. Mm/in +1.6,0/+0.063,0Dimensions mm/inBolt Size

40×25

1½×1

48.3×33.7

1.900×13.15

300 psi

2.07 Mpa

38

1.50

116

 4.57

68

 2.68

58

2.28

40

1.57

M10*45-2

50×25

2×1

60.3×33.7

2.375×1.315

38

1.50

118

4.64

71

 2.80

58

 2.36

40

 1.57

M10*55-2

50×32

2×1¼

60.3×42.4

  2.375×1.660

46

1.81

118

4.64

75

 2.95

60

 2.56

40

1.57

M10*55-2

50×40

 2×1½

60.3×48.3

2.375×1.900

46

1.81

118

 4.64

75

 2.95

63

2.56

40

 1.57

M10*55-2

65×32

2½×1¼

73.0×42.4

2.875×1.660

46

1.81

133

 523

81

3.18

69

 2.87

47

 1.85

M10*55-2

65×40

2½×1½

73.0×48.3

2.875×1.900

51

2.007

133

  5.23

86

3.38

69

 2.87

47

1.85

M10*55-2

65×25

2½×1

76.1×33.7

3.000×1.315

38

1.50

136

5.35

72

 2.83

69

 2.72

49

1.93

M10*55-2

65×32

 2½×1¼

76.1×42.4

3.000×1.660

46

1.81

136

5.35

81

3.18

71

 2.72

49

1.93

M10*55-2

65×40

2½×1½

76.1×48.3

3.000×1.900

51

 2.007

136

 5.35

86

3.38

71

 2.72

49

1.93

M10*55-2

80×25

3×1

88.9×33.7

3.500×1.315

38

1.50

150

 5.98

73

 2.87

75

3.15

56

 2.20

M10*55-2

80×32

3×1¼

88.9×42.4

3.500×1.660

46

1.81

150

 5.98

82

 3.22

77

 3.15

56

2.20

M10*55-2

80×40

3×1½

88.9×48.3 3.500×1.900

51

 2.007

150

5.90

87

 3.42

77

3.15

56

 2.20

M10*55-2

80×50

3×2

88.9×60.3

3.500×2.375

64

2.520

150

 5.90

100

3.93

81

3.15

56

 2.20

M10*55-2

100×25

4×1

108.0×33.7

4.250×1.315

38

1.50

172

6.77

78.5

3.09

87

 3.43

64.5

 2.54

M12*65-2

100×32

4×1¼

108.0×42.4

4.250×1.660

46

1.81

172

  6.77

89

3.50

87

3.43

64.5

2.54

M12*65-2

100×40

4×1½

108.0×48.3

4.250×1.900

51

2.007

172

 6.77

89

3.50

87

3.43

64.5

2.54

M12*65-2

100×50

4×2

108.0×60.3

4.250×2.375

64

2.520

172

 6.77

106.5

 4.19

92

3.62

64.5

2.54

M12*65-2

100×65

4×2½

108.0×76.1

4.250×3.000

81

3.18

172

  6.77

106.5

  4.19

96

3.78

64.5

 2.54

M12*65-2

100×25

4×1

114.3×33.7

4.500×1.315

38

1.50

182

 7.16

73

2.87

89

3.66

70

 2.76

M12*65-2

100×32

 4×1¼

114.3×42.4

4.500×1.660

46

1.81

182

 7.16

82

3.22

90

3.74

70

 2.76

M12*65-2

100×40

 4×1½

114.3×48.3

4.500×1.900

51

2.007

182

7.16

87

 3.42

90

 3.82

70

 2.76

M12*65-2

100×50

 4×2

114.3×60.3

 4.500×2.375

64

2.520

182

7.16

100

3.93

95

 3.62

70

2.76

M12*65-2


Nominal

Size

mm/in

Pipe OD.

mm/in

Working

Pressure

psi/Mpa

Hole Dia. Mm/in +1.6,0/+0.063,0Dimensions mm/inBolt Size

100×65

      4×2½

114.3×76.1

4.500×3.000

300 psi

2.07 Mpa

81

 3.18

182

7.16

118

4.64

94

4.02

70

2.76

M12*65-2

100×80

4×3

114.3×88.9

4.500×3.500

81

3.18

182

7.16

124

4.88

100

4.02

70

 2.76

M12*65-2

125×25

5×1

133.0×33.7

5.250×1.315

38

1.50

208

 8.18

74

2.91

100

4.13

79

 3.11

M12*70-2

125×32

5×1¼

133.0×42.4

5.250×1.660

46

1.81

208

8.18

83

3.26

101

4.13

79

 3.11

M12*70-2

125×40

5×1½

133.0×48.3

5.250×1.900

51

 2.007

208

8.18

88

3.46

101

4.13

79

 3.11

M12*70-2

125×50

5×2

133.0×60.3

5.250×2.375

64

2.520

208

8.18

102

 4.01

105

4.33

79

 3.11

M12*70-2

125×65

5×2½

133.0×76.1

5.250×3.000

81

3.18

208

8.18

119

4.68

103

4.53

79

 3.11

M12*70-2

125×80

 5×3

133.0×88.9

5.250×3.500

89

3.504

208

 8.18

134

5.27

110

 4.65

79

  3.11

M12*70-2

125×25

5×1

139.7×33.7

5.500×1.315

38

1.50

215

8.46

74

2.91

103

 4.33

83

3.26

M12*70-2

125×32

5×1¼

139.7×42.4

5.500×1.660

46

1.81

215

 8.46

83

3.26

104

4.41

83

 3.26

M12*70-2

125×40

 5×1½

139.7×48.3

5.500×1.900

51

 2.007

215

8.46

88

3.46

104

 4.41

83

 3.26

M12*70-2

125×50

5×2

139.7×60.3

 5.500×2.375

64

2.520

215

 8.46

102

4.01

108

 4.53

83

3.26

M12*70-2

125×65

5×2½

139.7×76.1

5.500×3.000

81

3.18

215

8.46

119

4.68

108

4.53

83

 3.26

M12*70-2

125×80

 5×3

139.7×88.9

5.500×3.500

89

3.504

215

8.46

134

5.27

113

4.72

83

3.26

M12*70-2

150×25

6×1

159.0×33.7

6.250×1.315

38

 1.50

244

9.60

78

3.07

116

 4.57

94

3.70

M12*75-2

150×32

6×1¼

159.0×42.4

6.250×1.660

46

1.81

244

9.60

93

3.66

118

 4.65

94

 3.70

M12*75-2

150×40

  6×1½

159.0×48.3

6.250×1.900

51

2.007

244

 9.60

93

3.66

118

4.65

94

3.70

M12*75-2

150×50

 6×2

159.0×60.3

6.250×2.375

64

 2.520

230

9.05

98

3.85

115

4.53

90

 3.54

M12*75-2

150×65

6×2½

159.0×76.1

6.250×3.000

81

 3.18

230

 9.05

121

4.76

125

 4.92

90

3.54

M12*75-2

150×80

6×3

159.0×88.9

6.250×3.500

89

3.504

230

9.05

134

5.27

125

4.92

90

 3.54

M12*75-2

150×25

6×1

165.1×33.7

6.500×1.315

38

1.50

240

9.44

74

2.91

117

 4.65

96

3.77

M12*75-2

150×32

6×1¼

165.1×42.4

6.500×1.660

46

1.81

240

9.44

83

3.26

118

4.65

97.5

3.84

M12*75-2



Nominal

Size

mm/in

Pipe OD.

mm/in

Working

Pressure

psi/Mpa

Hole Dia. Mm/in +1.6,0/+0.063,0Dimensions mm/inBolt Size

150×40

6×1½

165.1×48.3

6.500×1.900

300 psi

2.07 Mpa

51

2.007

240

9.44

88

3.46

118

4.65

97.5

 3.84

M12*75-2

150×50

6×2

165.1×60.3

6.500×2.375

64

2.520

240

 9.44

102

 4.01

120

5.43

96

 3.77

M12*75-2

150×65

6×2½

165.1×76.1

6.500×3.000

81

3.18

240

9.44

119

4.68

121

5.43

96

3.77

M12*75-2

150×80

6×3

165.1×88.9

6.500×3.500

89

 3.504

240

9.44

134

5.27

126

5.43

96

 3.77

M12*75-2

150×100

6×4

165.1×114.3

6.500×4.500

114

4.48

240

 9.44

158

6.22

132

5.32

96

 3.77

M12*75-2

150×25

6×1

168.3×33.7

6.625×1.315

38

1.50

244

9.60

74

2.91

119

5.12

97

 3.81

M16*85-2

150×32

6×1¼

168.3×42.4

6.625×1.660

46

1.81

244

9.60

83

3.26

120

5.12

98.5

3.88

M16*85-2

150×40

6×1½

168.3×48.3

6.625×1.900

51

2.007

244

9.60

88

3.46

120

4.80

98.5

 3.88

M16*85-2

150×50

6×2

168.3×60.3

6.625×2.375

64

 2.520

244

 9.60

102

4.01

122

5.20

97

3.81

M16*85-2

150×65

6×2½

168.3×73.0

6.625×2.875

81

3.18

244

9.60

119

4.68

123

5.20

97

3.81

M16*85-2

150×65

6×2½

168.3×76.1

6.625×3.000

81

3.18

244

9.60

119

4.68

123

5.20

97

3.81

M16*85-2

150×80

6×3

168.3×88.9

6.625×3.500

89

3.504

244

 9.60

134

5.27

128

5.51

97

 3.81

M16*85-2


Nominal

Size

mm/in

Pipe OD.

 mm/in

Working

Pressure

psi/Mpa

Hole Dia. Mm/in +1.6,0/+0.063,0

Dimensions

 mm/in

Bolt Size

200×25

 8×1

219.1×33.7

  8.625×1.315

300 psi

2.07 Mpa

38

1.50

308

12.12

74

 2.91

145

 5.91

124

4.88

M16*85-2

200×32

 8×1¼

219.1×42.4

8.625×1.660

46

1.81

308

 12.12

83

3.26

146

 5.91

124

 4.88

M16*85-2

200×40

8×1½

219.1×48.3

 8.625×1.900

51

 2.007

308

 12.12

88

 3.46

146

5.91

124

4.88

M16*85-2

200×50

 8×2

219.1×60.3

8.625×2.375

64

2.520

308

12.12

102

 4.01

149

 6.30

124

 4.88

M16*85-2

200×65

8×2½

219.1×76.1

8.625×3.000

81

3.18

308

12.12

119

 4.68

149

 6.24

124

4.88

M16*85-2

200×80

8×3

219.1×88.9

8.625×3.500

89

3.504

308

12.12

134

 5.27

154

6.30

124

 4.88

M16*85-2

200×100

 8×4

219.1×114.3

8.625×4.500

114

4.48

308

12.12

158

 6.22

159

 6.30

124

  4.88

M16*85-2

250×40

10×1½

273×48.3

10.748×1.900

51

2.007

376

12.205




M22*100-2

250×40

10×2

273×60.3

10.748×2.375

64

2.520

376

 12.205




M22*100-2

250×65

 10×2½

273×76.1

10.748×2.375

81

3.18

376

12.205




M22*100-2

250×80

10×3

273×88.9

10.748×3.500

89

3.504

376

12.205




M22*100-2
