Reducing Cross with Female Thread XGQT051S
Housing Material: Ductile iron conforming to ASTM A-536 65-45-12
Coating: Paint, Epoxy, Galvanized, Dacromet
Groove: Conforming to international general requirements and can be connected with any brand grooved fittings and couplings.
Thread: BSPT, NPT
Tel/WeChat：+86-15863655878
WhatsApp：++86 15863655878
Email:info@sdsxgy.com

PRODUCT DESCRIPTION

Nominal

Size

mm/in

Pipe OD.

mm/in

Working

Pressure

psi/Mpa

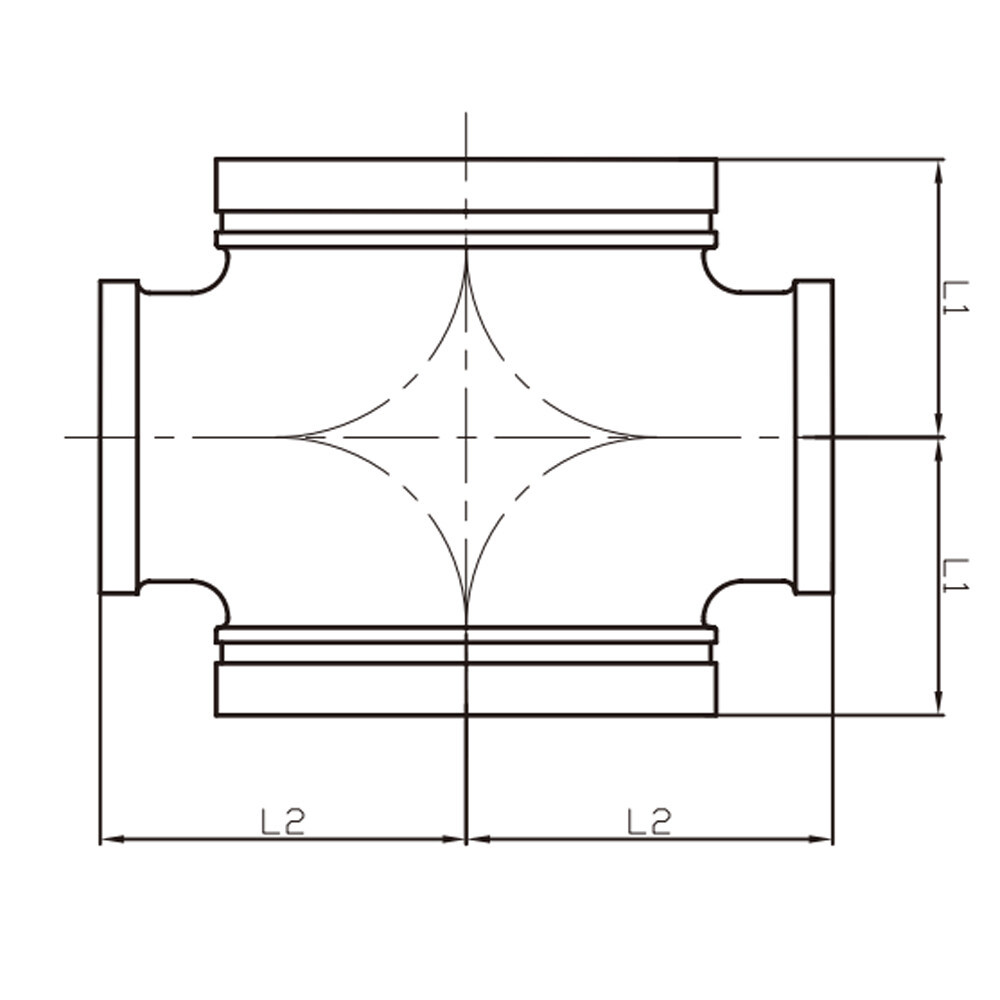

Dimensions

L1 mm/in

Dimensions

 L2 mm/in

100×25

4×1

114.3×33.7

  4.500×1.315

300 psi

2.07 Mpa

101

3.98

101

3.98

100×32

4×1¼

114.3×42.4

 4.500×1.660

101

3.98

101

 3.98

100×40

4×1½

114.3×48.3

 4.500×1.900

101

3.98

101

3.98

100×50

4×2

114.3×60.3

4.500×2.375

101

3.98

101

3.98

100×65

4×2½

114.3×76.1

 4.500×3.000

101

3.98

101

3.98

100×80

4×3

114.3×88.9

4.500×3.500

101

 3.98

101

3.98

125×32

5×1¼

139.7×42.4

5.500×1.660

122

  4.803

122

4.803

125×40

5×1½

139.7×48.3

5.500×1.900

122

   4.803

122

4.803

125×50

5×2

139.7×60.3

 5.500×2.375

122

 4.803

122

 4.803

125×65

5×2½

139.7×76.1

5.500×3.000

122

4.803

122

 4.803

125×80

5×3

139.7×88.9

5.500×3.500

122

 4.803

122

 4.803

150×25

6×1

165.1×33.7

6.500×1.315

140

5.50

140

  5.50

150×32

6×1¼

165.1×42.4

6.500×1.660

140

5.50

140

5.50

150×40

6×1½

165.1×48.3

6.500×1.900

140

5.50

140

5.50

150×50

6×2

165.1×60.3

 6.500×2.375

140

 5.50

140

 5.50

150×65

6×2½

165.1×76.1

6.500×3.000

140

 5.50

140

5.50

150×80

6×3

165.1×88.9

6.500×3.500

140

5.50

140

5.50
