  • 90°End All XGQT01S
  • 90°End All XGQT01S
  • 90°End All XGQT01S

›

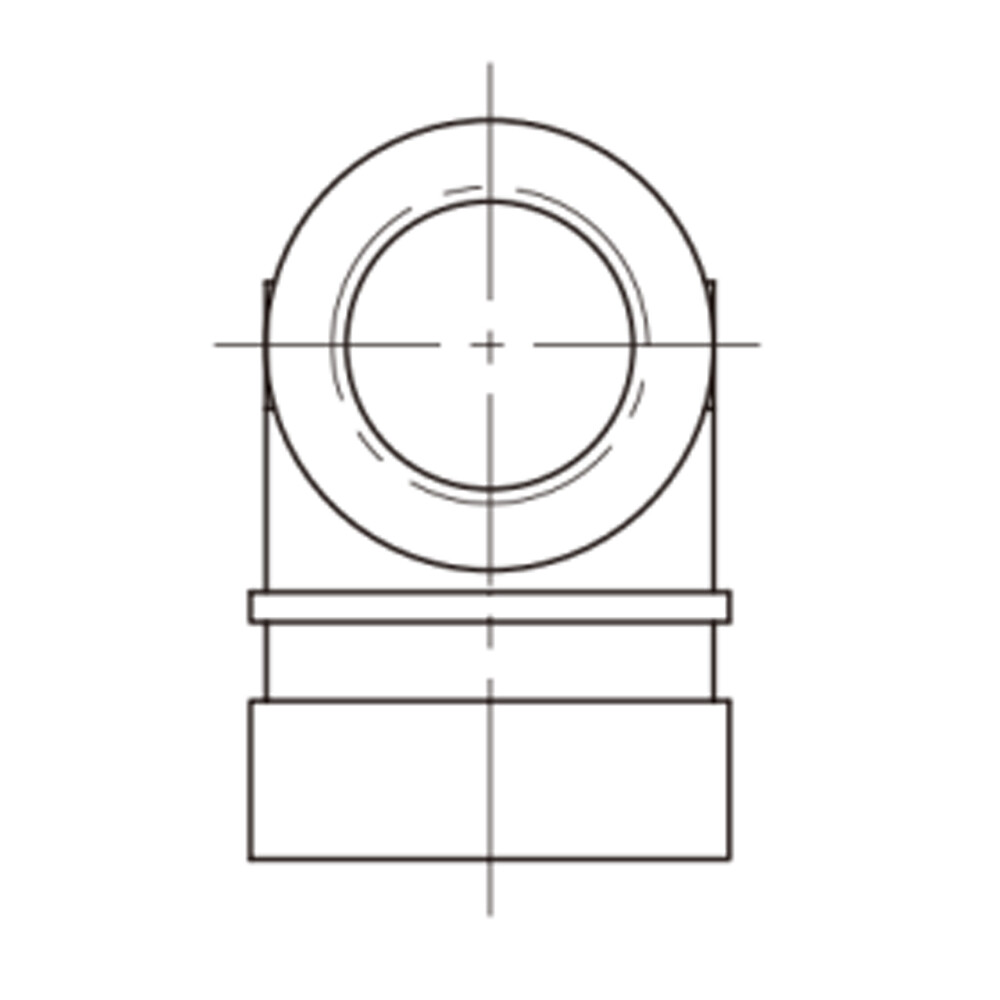

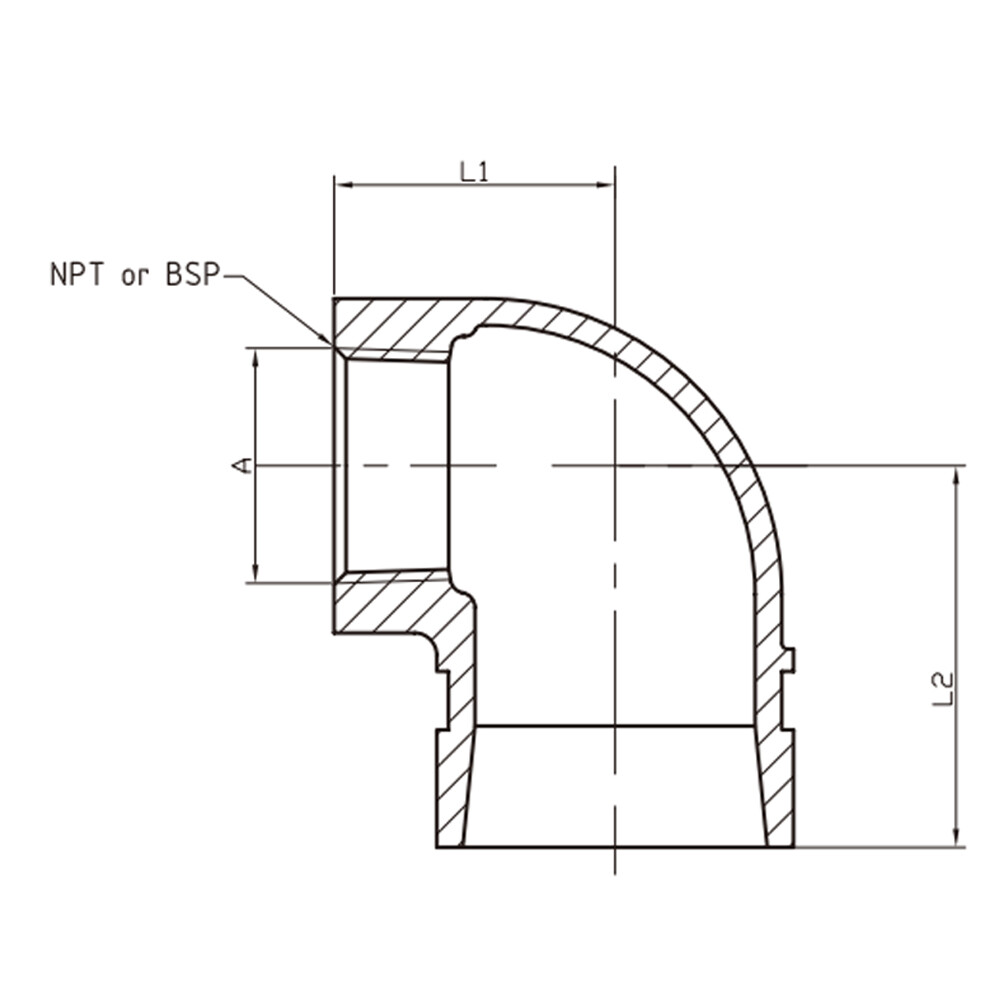

90°End All XGQT01S
Housing Material: Ductile iron conforming to ASTM A-536 65-45-12
Coating: Paint, Epoxy, Galvanized, Dacromet
Groove: Conforming to international general requirements and can be connected with any brand grooved fittings and couplings.
Thread: BSPT, NPT
Tel/WeChat：+86-15863655878
WhatsApp：++86 15863655878
Email:info@sdsxgy.com

PRODUCT DESCRIPTION

Nominal

Size

mm/in

Pipe OD.

mm/in

Working

Pressure

psi/Mpa

Dimensions  L mm/in

40×15

1½x½

48.3*21.3

1.900*0.825

300 psi

2.07 Mpa

60

 2.362

40×20

1½x¾

48.3*26 .9

1.900*1.050

60

 2.362

40×25

1½x1

48.3×33.7

1.900×1.315

60

2.362

50×15

2x½

60.3×21.3

 2.375×0.825

70

2.75

50×20

2x¾

60.3×26.9

2.375×1.050

70

2.75

50×25

2×1

60.3×33.7

2.375×1.315

70

2.75
