Flange Adaptor ANSI CLASS150 XGQT08
Housing Material: Ductile iron conforming to ASTM A-536 65-45-12
Coating: Paint, Epoxy, Galvanized, Dacromet
Groove: Conforming to international general requirements and can be connected with any brand grooved fittings and couplings.
Style: ANSI CLASS150
Tel/WeChat：+86-15863655878
WhatsApp：++86 15863655878
Email:info@sdsxgy.com

PRODUCT DESCRIPTION

Nominal

Size

mm/in

Pipe OD.

mm/in

Working

Pressure

psi/Mpa

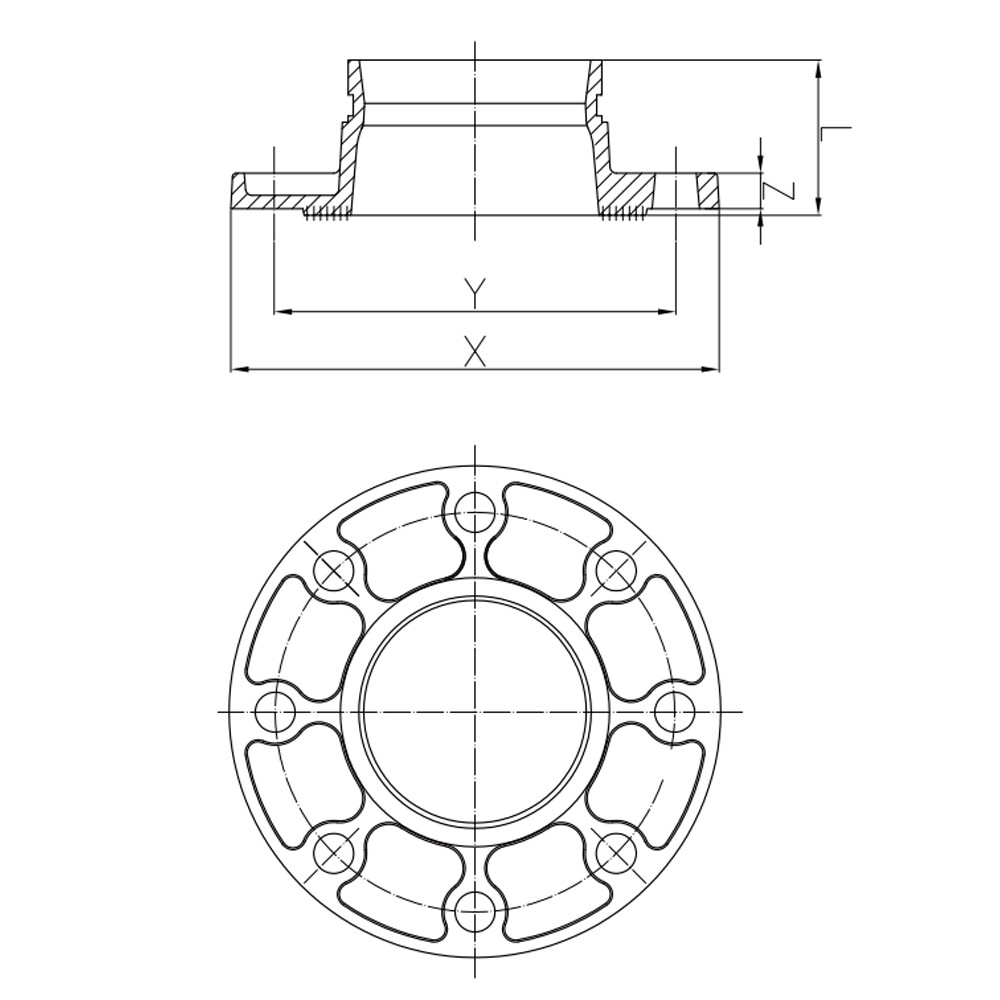

Dimensions mm/inBolt/Size

L

mm/in

X

mm/in

Y

mm/in

Z

mm/in

No.-Size

mm

50

2

60.3

2.375

300 psi

2.07 Mpa

60

 2.362

160

 6.30

120.7

 4.75

15

0.59

4-M16

65

2½

73

2.875

60

2.362

180

7.08

139.7

5.50

15

0.59

4-M16

80

 3

88.9

3.5

65

 2.559

200

7.87

152.5

6.00

15

0.59

4-M16

100

  4

114.3

 4.5

70

2.756

228

8.97

190.5

7.50

16

0.63

8-M16

125

 5

141

4.5

70

 2.756

250

9.84

216

8.50

17

0.67

8-M20

150

6

168.3

 6.625

70

 2.756

282

11.10

241.5

9.50

17

0.67

8-M20

200

8

219.1

 8.625

75

2.952

340

13.39

298.5

11.75

19

0.74

8-M20

250

 10

273

10.75

85

 3.346

405

15.94

362

14.25

21

 0.82

12-M24

300

 12

323.9

12.750

85

 3.346

482

18.97

432

17.00

22

0.86

12-M24
